Description
Standard or Light Duty insulation fastener with #2 Light Duty Drill Point. Specially engineered for attaching Atlas ACFoam® Nail Base and ACFoam® CrossVent® to corrugated steel and wood deck substrates. Atlas Nail Base Fasteners are required for proper mechanical attachment of all ACFoam Nailable Insulation Systems.

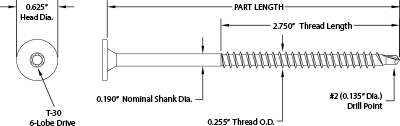

| MATERIAL: | Case hardened and Tempered Carbon Steel |
|---|---|
| HEAD STYLE/DRIVE: | Pancake Head with T-30 Internal Drive |
| HEAD DIAMETER: | 0.625ʺ |
| SHANK DIAMETER: | 0.190ʺ |
| THREAD LENGTH: | 2.750ʺ |
| OVERALL LENGTH: | 3ʺ thru 18ʺ |
| POINT: | #2 (0.135ʺ dia.) Drill Point |
| COATING: | Epoxy E-Coat (black) Passes more than 15 cycles (Kesternich) in accordance with DIN 500185 |
| TENSILE STRENGTH | SHEAR STRENGTH | HEAD PULL-THRU VALUE (7/16ʺ OSB) |
|---|---|---|
| 3,380 lbf | 2,900 lbf | 545 lbf |
| LATERAL LOAD RESISTANCE1 | ||
|---|---|---|
| MAIN MEMBER | SIDE MEMBER | LOAD |
| 22 Ga. Corrugated Steel | Nail Base | 411 lbf |
| 7/16ʺ OSB | Nail Base | 112 lbf |
| WITHDRAWAL VALUES IN STEEL1 (80 KSI MIN.) | |||
|---|---|---|---|
| Type B Corrugated | 22 Ga. | 20 Ga. | 18 Ga. |
| lbf | 510 | 645 | 920 |
| WITHDRAWAL VALUES IN WOOD1 | |||||||
|---|---|---|---|---|---|---|---|
| Specific Gravity | 0.67 | 0.55 | 0.50 | 0.46 | 0.43 | 0.36 | 0.31 |
| lb/in. | 1429 | 1173 | 1067 | 981 | 917 | 768 | 661 |
1“Head Pull-Thru”, “Withdrawal” and “Lateral Load” data reflect average ultimate values.
| IN | MM | PKG. QTY. |
|---|---|---|
| 3.0 | 76 | 500/PAIL |
| 3.5 | 89 | 500/PAIL |
| 4.0 | 102 | 500/PAIL |
| 4.5 | 114 | 500/PAIL |
| 5.0 | 127 | 500/PAIL |
| 5.5 | 140 | 500/PAIL |
| 6.0 | 152 | 500/PAIL |
| 6.5 | 165 | 500/PAIL |
| 7.0 | 178 | 500/PAIL |
| 7.5 | 191 | 500/PAIL |
| 8.0 | 203 | 500/PAIL |
| 8.5 | 216 | 250/PAIL |
| 9.0 | 229 | 250/PAIL |
| 10.0 | 254 | 250/PAIL |
| 11.0 | 279 | 250/PAIL |
| 12.0 | 305 | 250/PAIL |
| 13.0 | 330 | 250/BOX |
| 14.0 | 356 | 250/BOX |
| 15.0 | 381 | 250/BOX |
| 16.0 | 406 | 250/BOX |
| 18.0 | 457 | 250/BOX |
NOTE: Two T-30 Driver Bits included in each package.
Note: All tests were conducted by an independent testing laboratory. Test results are offered only as a guide and are not guaranteed in any way by Atlas Roofing Corporation.
